Description

3(L)(4) SERIES

Centrifugal pump EN733 compliant and available in different materials:

• Stainless steel AISI 304 (3 SERIES)
• Stainless steel AISI 316 (3L SERIES)
• Stainless steel AISI 316 micro-cast for some models (3L SERIES)

EBARA Pumps Europe perfectly understands the different needs of the sectors where the pumps will be used. This is why it has created the 3 SERIES with 2 or 4 poles motors; a complete, innovative, reliable and efficient series to operate successfully even in the most difficult and heavy-duty conditions.
The distinguishing feature of 3 SERIES is the back pull-out design: a conformation that allows the removal of the impeller-motor block without disconnecting the pump body from the piping, thus allowing any type of maintenance.
The range consists of the:

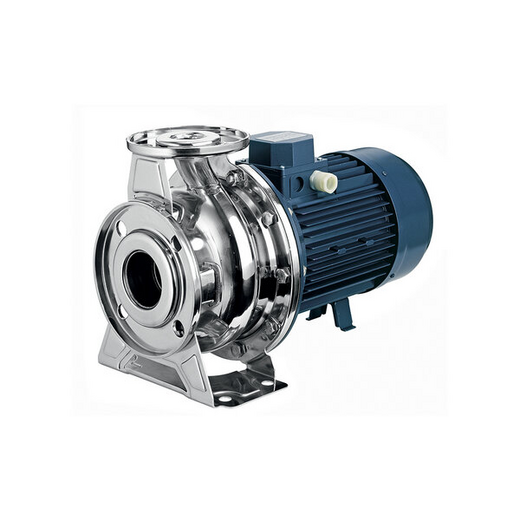

• Monobloc 3(L)M SERIES
• With rigid coupling 3(L)S SERIES

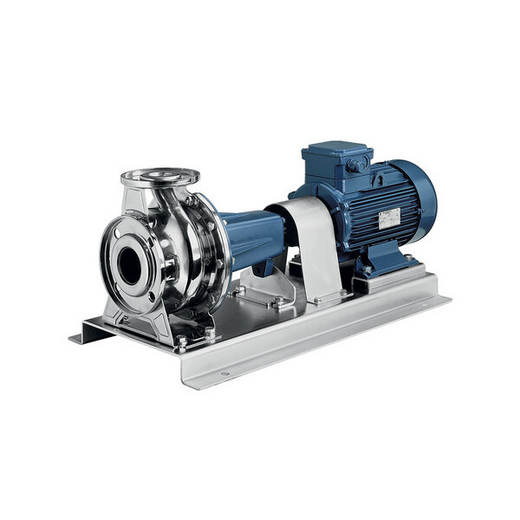

• With elastic coupling 3(L)P SERIES

For the 3LM SERIES and 3LS SERIES the Z version is available, with the casing body without the support foot and with a new foot directly mounted to the motor bracket.
This solution allows the pump to stay in limited spaces where it is not possible to connect the foot of the standard 3 SERIES and, most importantly, allows to connect the pump in different positions thanks to the 90° rotation of the foot.
