Description

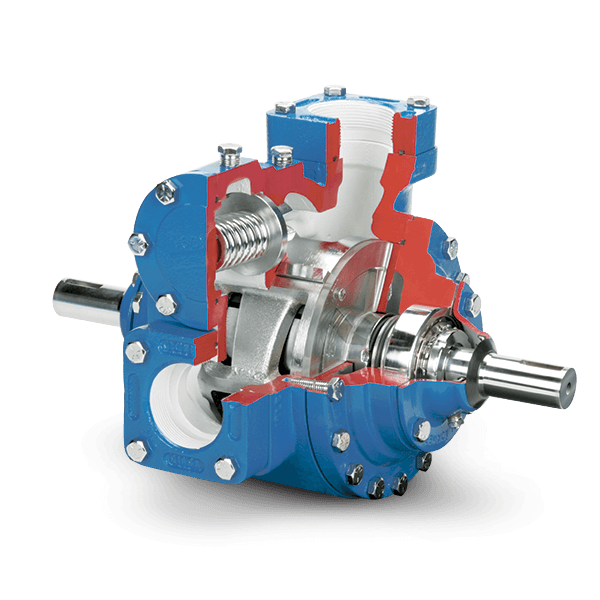

Autogas Sliding Vane Pumps
Blackmer® has several options for sliding vane pumps that are suitable for the rigors associated with Autogas applications. Part of the Cavitation Line, the LGLH2 sliding vane pumps feature high differential pressure designs and a cavitation suppression liner, providing a fast and quiet operation that performs consistently and without fail. Replaceable liners and discs also ensure that downtime is kept to a minimum.
Performance and Specifications
AVAILABLE MODELS
- LGLH2
NOMINAL FLOW RATE RANGE
- LGLH2: 25 – 90 gpm (94 – 340 L/min)
DIFFERENTIAL PRESSURE
- LGLH2: 190 psi (13.1 bar)
MAXIMUM WORKING PRESSURE (MAWP)
LGLH2: 390 psi (26.8 bar)
VISCOSITY
- 0.2 – 10 cP
TEMPERATURE
- -25°F to 240°F (-32°C to 115°C)
MIN/MAX SPEED (rpm)
LGLH2: 350 – 980
PRIMARY MATERIALS OF CONSTRUCTION
- Ductile Iron
CONNECTION ORIENTATION
- LGLH2: Side Inlet | Top Outlet
VANE MATERIALS
- Duravane
AVAILABLE CERTIFICATES
- Hydrostatic Test
- Performance Test
- NPSH Test
- Material (actual or typical)
- Dimensional (pump only or unit)
