Description

Borehole motors

Submersible motors available in several versions: with rewindable or encapsulated options, Oil or water bath lubrication (rewindable with both oil and water bath lubrication, or encapsulated with water bath lubrication), single-phase and three-phase. They all comply with the NEMA standards and can be combined with 3”, 4”, 6”, 7″, 8” and 10″ pumps.

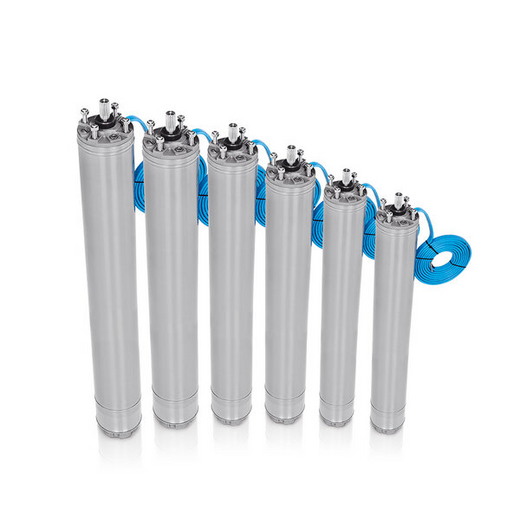

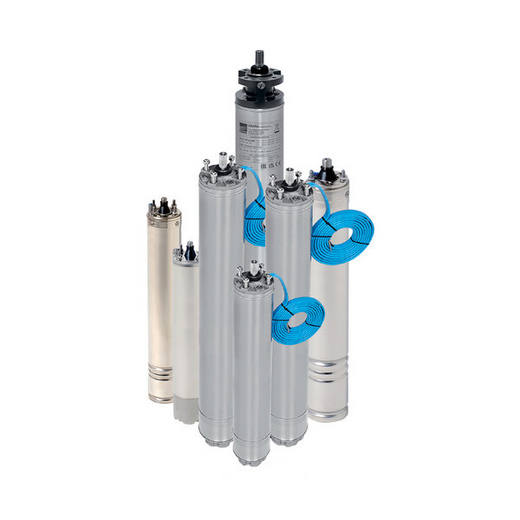

EBARA single-phase and three-phase submersible motors, suitable for coupling with 3”, 4”, 6”, 7″, 8” and 10″ pumps and available in various combinations. There’s a wide choice of submersible motors: from rewindable versions with oil bath lubrication, to encapsulated motors with water bath lubrication, plus the two brand new ranges – BSM and BSM 3S: rewindable motors with water bath lubrication.

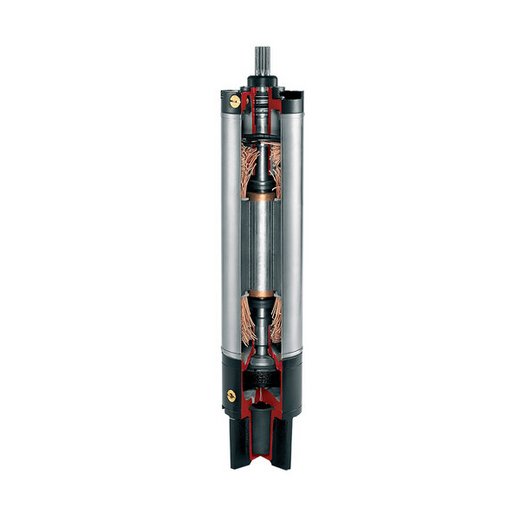

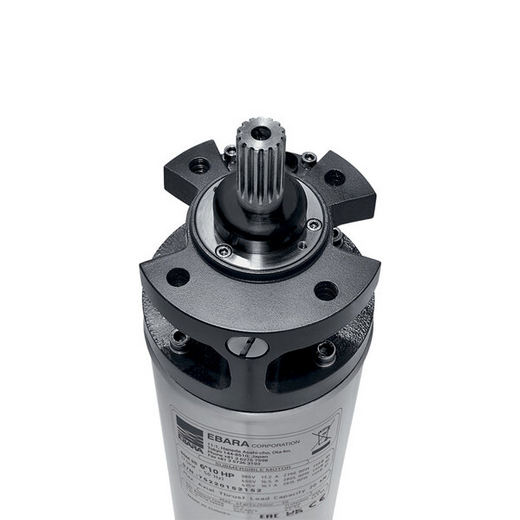

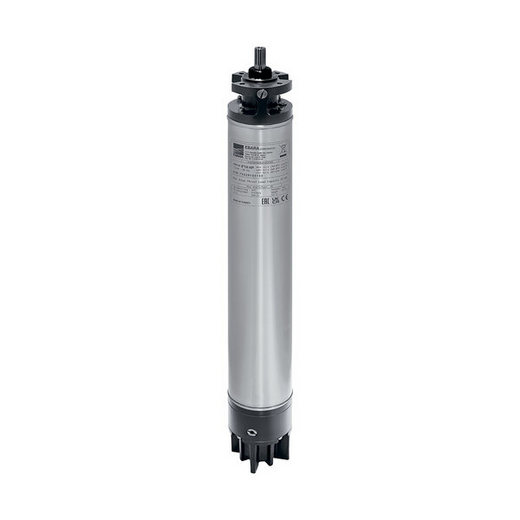

These new models are characterised by an AISI 304 stainless steel sleeve and cast iron supports for the BSM versions, and by 100% AISI 304 steel construction for the BSM 3S versions.
In addition, the BSM and BSM 3S motors are equipped with special windings with a PE2+PA standard cable that guarantees a longer motor lifespan and at the same time enhanced resistance to voltage fluctuations.
