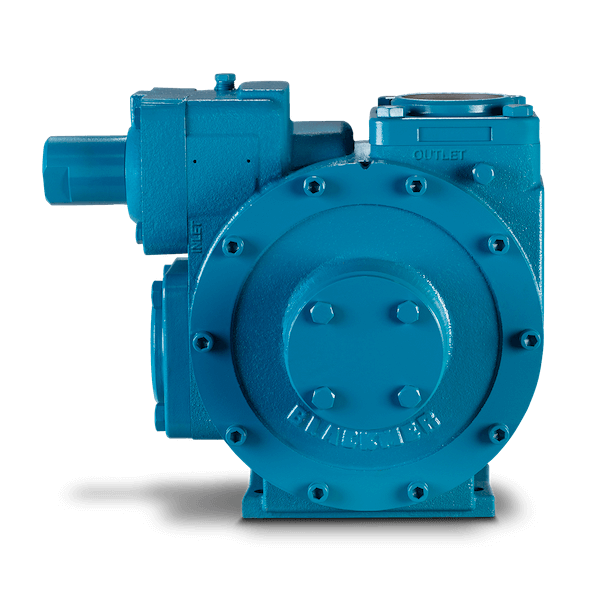

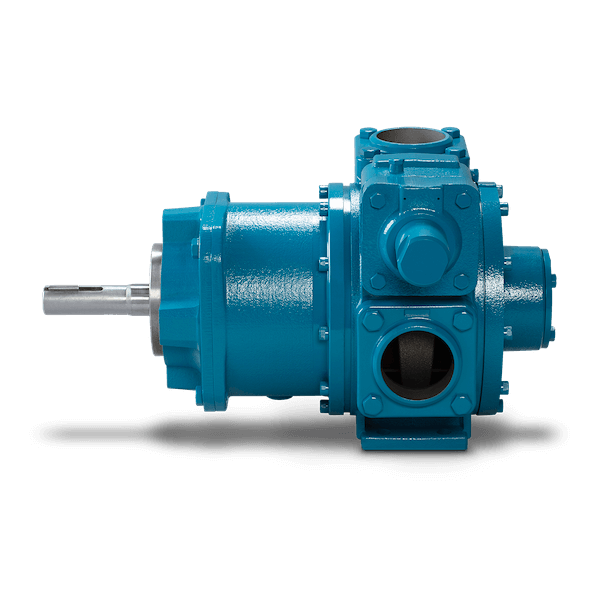

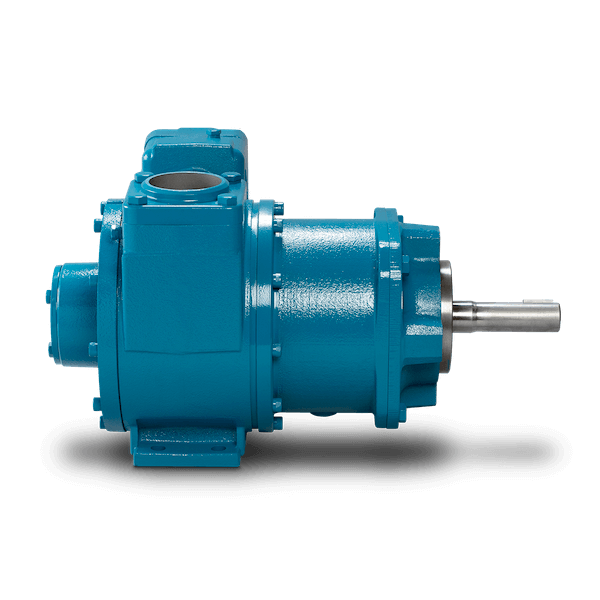

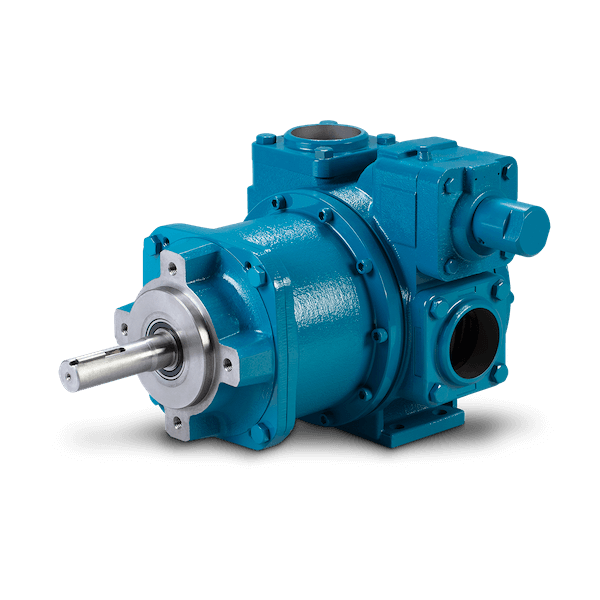

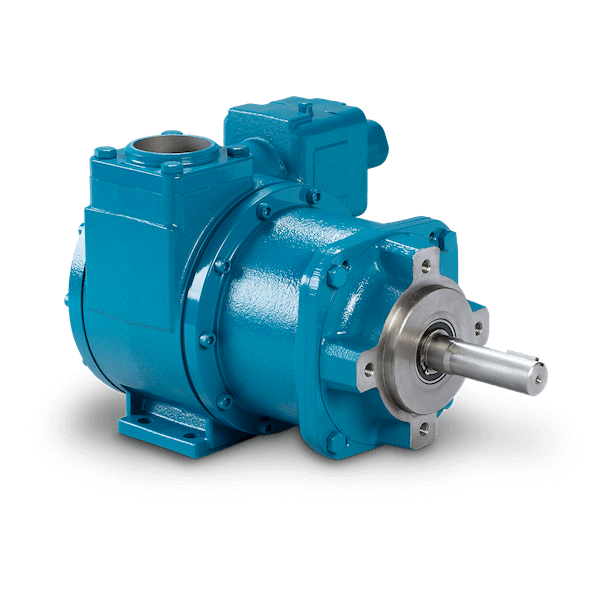

MAGNES Series Sliding Vane Magnetic Drive Pumps
Blackmer® MAGNES Series Magnetic Drive Pumps bring world-first set of functionality, reliability, and flexibility to critical processes in numerous markets. As the newest addition to Magnetic Drive Pump Line of sliding vane pumps, MAGNES Series Magnetic Drive Pumps are positive displacement rotary vane pumps that use a magnetic drive without dynamic seals. This self-priming magnetic drive pump provides a leak-free pumping solution for difficult to seal liquids and any liquids that are too expensive, valuable, dangerous or hazardous to leak.
Performance and Specifications
AVAILABLE MODELS
- MI3 MS3
- MI4 MS4
VANE MATERIALS
- Duravane®
- EC Laminate
MIN/MAX SPEED (rpm)
- MI3 & MS3: <640 RPM
- MI4 & MS4: <520 RPM
VISCOSITY
- 0.2 cP – 500 cP
TEMPERATURE
- -30°F to 240°F (-34°C to 115°C)
MAXIMUM WORKING PRESSURE (MAWP)
- 225 psi (15.5 bar)
CONNECTION ORIENTATION
- Ductile Iron (standard): Side Inlet | Top Outlet – 90-deg ported
- Ductile Iron (optional): Side Inlet | Side Outlet – 180-deg inline ported
- Stainless (standard): Side Inlet | Top Outlet – 90-deg ported
DIFFERENTIAL PRESSURE
- 200 psi (13.8 bar)
- 660 ft @ 0.7 SG (201 m @ 0.7 SG)
- 460 ft @ 1.0 SG (140 m @ 1.0 SG)
- 355 ft @ 1.3 SG (108 m @ 1.3 SG)
AVAILABLE CERTIFICATES
- Hydrostatic Test
- Performance Test
- NPSH Test
- Material (actual or typical)
- Dimensional (pump only or unit)
NOMINAL FLOW RATE RANGE
- MI3 & MS3: 75 – 260 gpm (284 – 984 L/min)
- MI4 & MS4: 200 – 520 gpm (757 – 1,968 L/min)
PRIMARY MATERIALS OF CONSTRUCTION
- MI3: 180-deg inline ported Ductile Iron | 90-deg ported Cast Iron
- MI4: Ductile Iron
- MS3 & MS4: Stainless Steel
MAGNES Nominal Flow Rate Range
