MLX Sliding Vane Pumps

Description

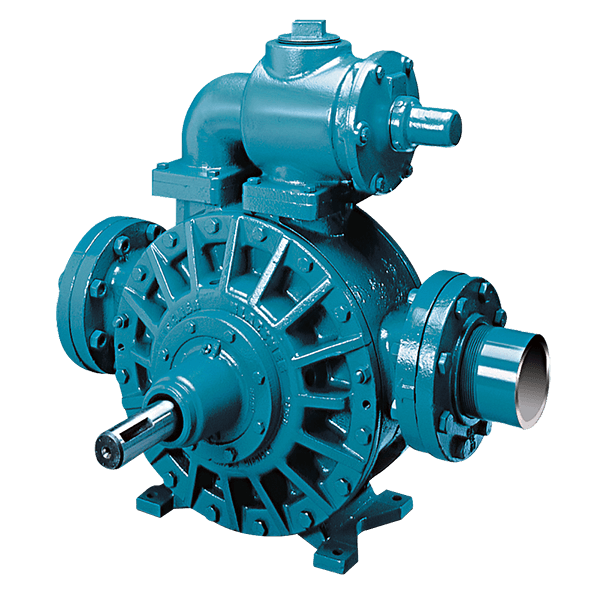

MLX Sliding Vane Pumps

Model MLX Sliding Vane Pumps, part of the Heavy Duty Line, are designed for handling all types of liquids from light non-lubricating to viscous abrasive slurries and waste oils. The MLX pump features internal mechanical seals with external ball bearings. The hub assembly in this model features external grease-lubricated spherical roller bearings and can be fitted with a wide selection of Blackmer® mechanical seals. Options include hardened or wear resistant internal components.

Performance and Specifications

AVAILABLE MODELS
  • MLX4
TEMPERATURE
  • -25°F to 240°F (-32°C to 115°C)
MIN/MAX SPEED (rpm)
  • 68 – 600
VISCOSITY
  • 0.2 – 21,000 cP
NOMINAL FLOW RATE
  • 35 – 590 gpm (132 – 2,233 L/min)
MAXIMUM WORKING PRESSURE (MAWP)
  • 250 psi (17.2 bar)
CONNECTION ORIENTATION
  • Side Inlet | Side Outlet
DIFFERENTIAL PRESSURE
  • 200 psi (13.8 bar)
PRIMARY MATERIALS OF CONSTRUCTION
  • Ductile Iron
VANE MATERIALS
  • Laminate
  • Bronze
  • Hardened Steel
AVAILABLE CERTIFICATES
  • Hydrostatic Test
  • Performance Test
  • NPSH Test
  • Material (actual or typical)
  • Dimensional (pump only or unit)

MLX Nominal Flow Rate Range

MLX Nominal Flow Rate Range
