Description

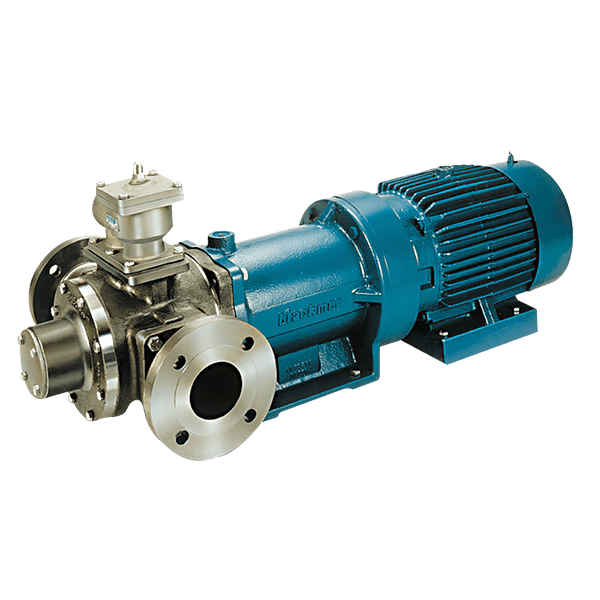

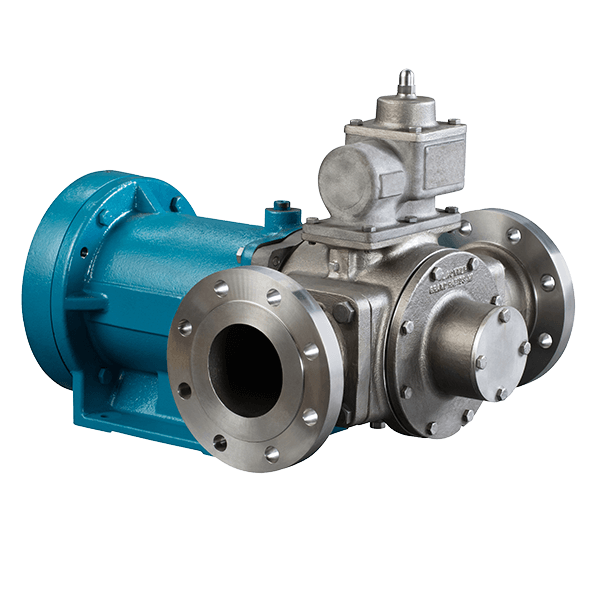

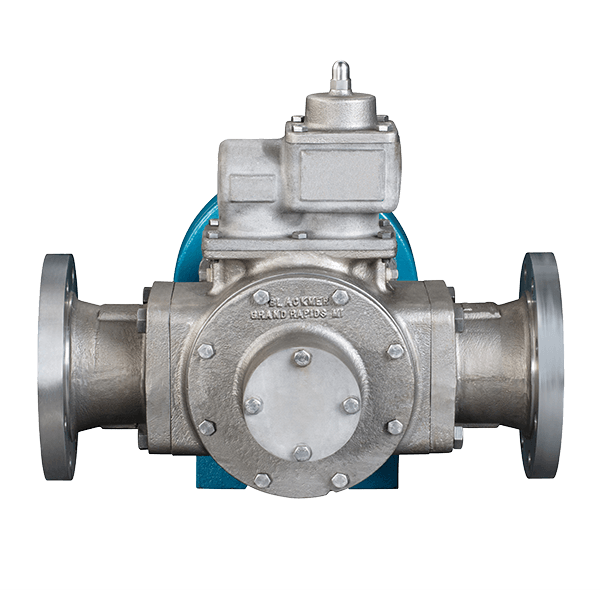

SMVP Series Sliding Vane Pumps
Blackmer® SMVP Series Sliding Vane Pumps, which are part of the Stainless Steel Line, are constructed of stainless steel and combine proven sliding vane technology with a seal-less magnetic coupling. The result is a durable, completely leak-free operation that minimizes product waste and dramatically improves production yield. The absence of shaft leakage increases both personal and environmental safety as it not only means no loss of liquids, but also no release of volatile organic compounds (VOCs) and hazardous air pollutants (HAPs). These pumps are ideal for safe transfer of critical high-value, hazardous or hard to seal fluids. The 6-vane design contributes to reduced noise levels in the pumps, ensuring a fast and quiet operation.
Performance and Specifications
AVAILABLE MODELS
- SMVP15
- SMVP30
- SMVP50
- SMVP100
- SMVP200
- SMVP300
NOMINAL FLOW RATE RANGE
- SMVP15: 1 – 17 gpm (4 – 62 L/min)
- SMVP30: 6 – 37 gpm (23 – 142 L/min)
- SMVP50: 1 – 66 gpm (4 – 251 L/min)
- SMVP100: 10 – 110 gpm (38 – 416 L/min)
- SMVP200: 55 – 215 gpm (208 – 813 L/min)
- SMVP300: 110 – 340 gpm (416 – 1,287 L/min)
DIFFERENTIAL PRESSURE
- SMVP15/30/50/100: 125 psi (8.6 bar)
- SMVP200/300: 100 psi (6.9 bar)
MAXIMUM WORKING PRESSURE (MAWP)
- SMVP15/30/50/100: 175 psi (12.1 bar)
- SMVP200/300: 150 psi (10.3 bar)
Viscosity
- SMVP15/30: 0.2 – 1,050 cP
- SMVP50/100: 0.2 – 2,100 cP
- SMVP200/300: 0.2 – 5,250 cP
TEMPERATURE
- -40°F to 200°F (-40°C to 93°C)
MIN/MAX SPEED (rpm)
- SMVP15/30: 640 – 1750
- SMVP50: 420 – 1750
- SMVP100: 350 – 1750
- SMVP200/300: 420 – 1150
PRIMARY MATERIALS OF CONSTRUCTION
- Stainless Steel, Duplex Stainless
CONNECTION ORIENTATION
- Side Inlet | Side Outlet
VANE MATERIALS
- Duravane
AVAILABLE CERTIFICATES
- Hydrostatic Test
- Performance Test
- NPSH Test
- Material (actual or typical)
- Dimensional (pump only or unit)
