Description
STX Sliding Vane Pumps
Blackmer® STX Series pumps, which are part of the Stainless Line of sliding vane pumps, offer fast fluid off-loading for high-temperature, high-viscosity applications. For example, typical off-loading of a 6,000 gallon (22,700 liter) tanker can be unloaded as quickly as 24 minutes. These pumps are made from 316 stainless steel with external ball bearings, non-metallic Duravanes, PTFE elastomers, and Blackmer chemical mechanical seals. STX pumps feature an adjustable relief valve, versatile mounting bracket, weld flanges and are self-priming.
Performance and Specifications
AVAILABLE MODELS

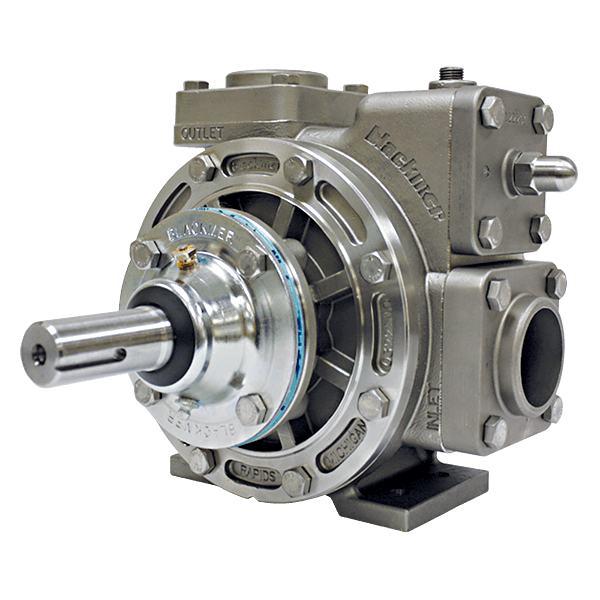

- STX2
- STX1220

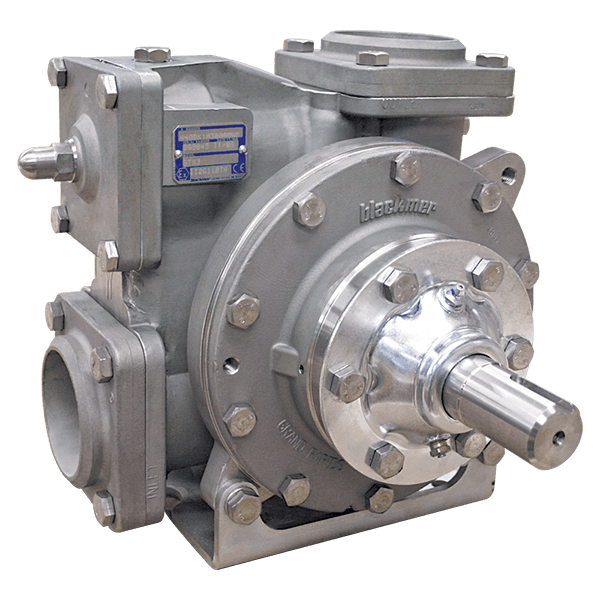

- STX3
VISCOSITY
- STX2: 0.2 – 990 cP
- STX1220: 0.2 – 22 cP
- STX3: 0.2 – 4,250 cP
MIN/MAX SPEED (rpm)
- STX2: 150 – 800
- STX1220: 700 – 1,200
- STX3: 300 – 800
TEMPERATURE
- -25°F to 240°F (-32°C to 115°C)
DIFFERENTIAL PRESSURE
- 125 psi (8.6 bar)
MAXIMUM WORKING PRESSURE (MAWP)
- 175 psi (12.1 bar)
PRIMARY MATERIALS OF CONSTRUCTION
- Stainless Steel
CONNECTION ORIENTATION
- Side Inlet | Top Outlet
VANE MATERIALS
- Duravane
NOMINAL FLOW RATE RANGE
- STX2: 7 – 60 gpm (27 – 227 L/min)
- STX1220: 45 – 92 gpm (171 – 348 L/min)
- STX3: 85 – 250 gpm (322 – 946 L/min)
AVAILABLE CERTIFICATES
- Hydrostatic Test
- Performance Test
- NPSH Test
- Material (actual or typical)
- Dimensional (pump only or unit)
STX Nominal Flow Rate Range
