TLGLF Sliding Vane Pumps

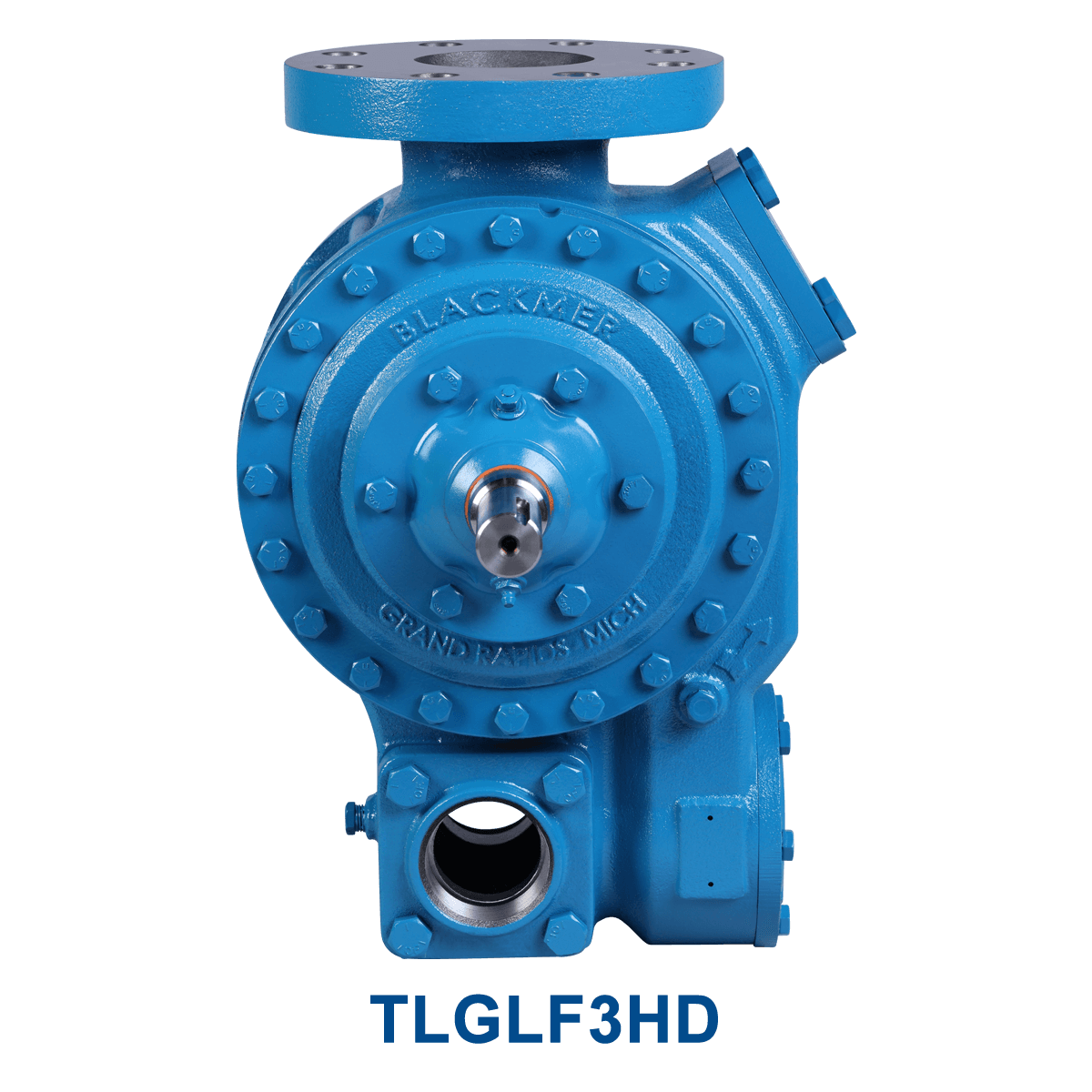

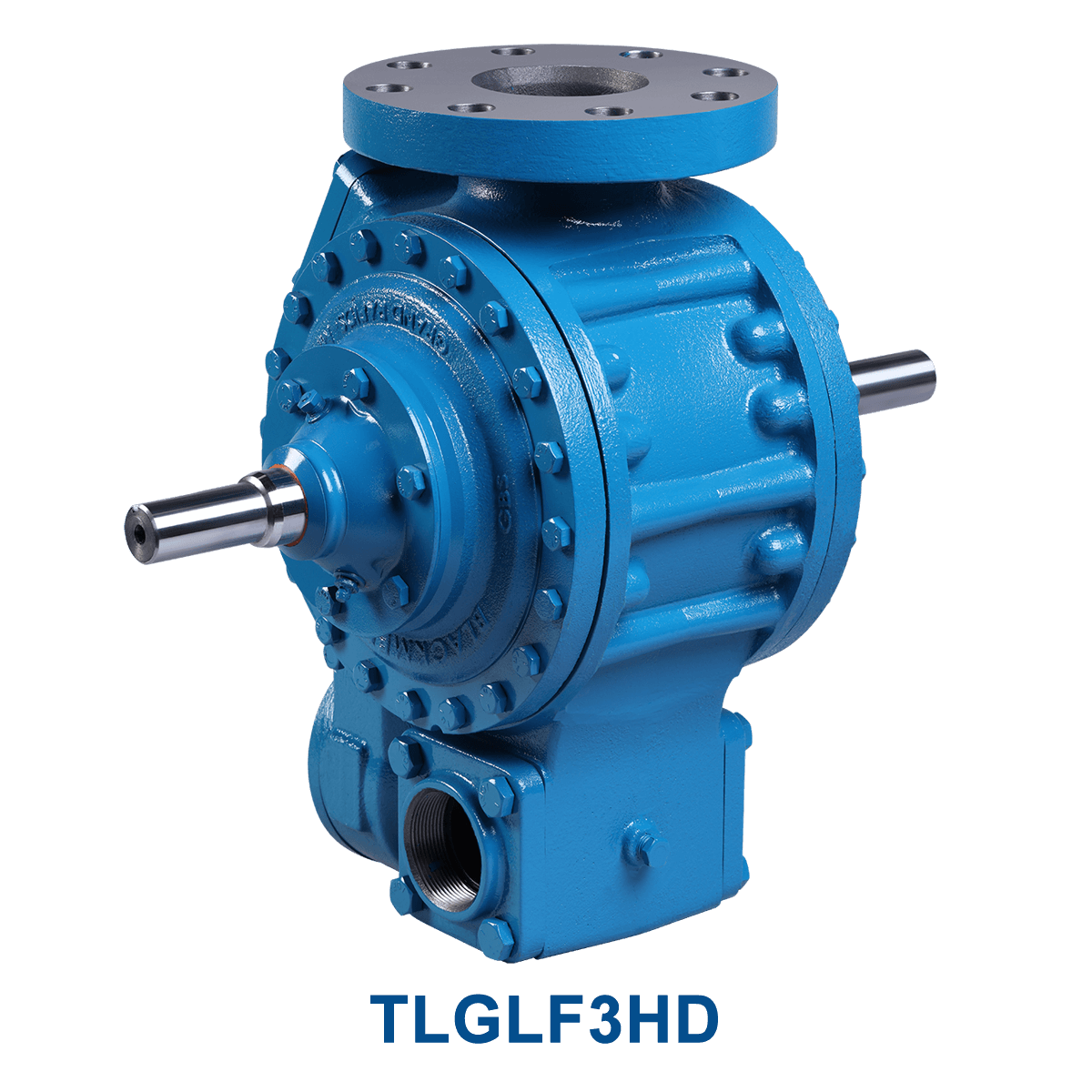

Blackmer® TLGLF Sliding Vane Pumps are flanged mounted propane truck pumps. UL listed for propane, butane and anhydrous ammonia, these pumps come in three models: the 3-inch TLGLF3, the 3-inch TLGLF3HD, and the 4-inch TLGLF4. With a max flow rate of 425 gpm (1,608 L/min) the TLGLF4 pumps are designed for transport loading and unloading. Whereas the TLGLF3, designed for bobtail truck use, features a flow rate of 140 gpm (530 L/min) ideal for smaller tank vessel sizes. With an increased flow rate that is 55% greater than the TLGLF3, the TLGLF3HD model features flow rates of 180 gpm (681 L/min), ideal for high-capacity bobtail trucks that often have 7,000 gallon sized tank vessels.
Performance and Specifications
AVAILABLE MODELS
- TLGLF3
- TLGLF3HD
- TLGLF4
NOMINAL FLOW RATE RANGE
- TLGLF3: 60 – 140 gpm (227 – 530 L/min)
- TLGLF3HD: 80 – 180 gpm (303 – 681 L/min)
- TLGLF4: 190 – 425 gpm (719 – 1608 L/min)
MIN/MAX SPEED (rpm)
- TLGLF3: 400 – 870
- TLGLF3HD: 350 – 800
- TLGLF4: 350 – 800
VISCOSITY
- 0.2 – 10 cP
VANE MATERIALS
- Duravane
MAXIMUM WORKING PRESSURE (MWAP)
- 350 psi (24.1 bar)
CONNECTION ORIENTATION
- Side Inlet | Top Outlet
DIFFERENTIAL PRESSURE
- 125 psi (8.6 bar)
PRIMARY MATERIALS OF CONSTRUCTION
- Ductile Iron
TEMPERATURE
- -25°F to 240°F (-32°C to 115°C)
AVAILABLE CERTIFICATES
- Hydrostatic Test
- Performance Test
- NPSH Test
- Material (actual or typical)
- Dimensional (pump only or unit)
TLGLF Target Flow Ranges & Unloading Times
