Description

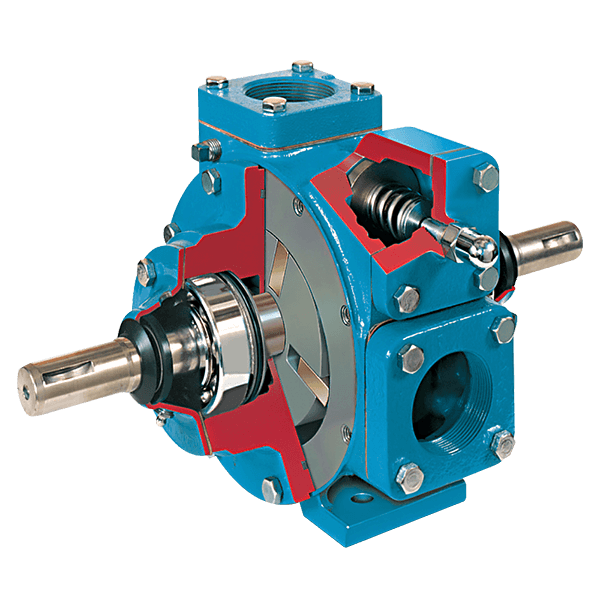

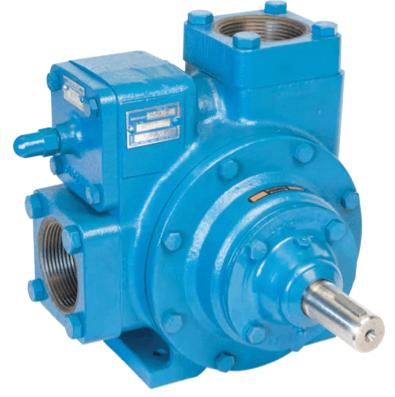

TXD1220 Sliding Vane Pumps
With pump speeds of up to 1,200 RPM, the durable, high-speed, Iron Line, TX1220 truck pumps provide fast and quiet operation while the sliding vane design offers sustained performance and reliability.
Adjustable relief valve protects pump from excessive pressure. Optional air operated piston-style relief valve offers easy hose and nozzle handling. T-type strainers are available to protect pumping systems from damage caused by welding slag and foreign matter in the piping and tanks.
Available in 2-, 2.5- and 3-in port sizes with flow rates from 20 to 265 US gallons per minute (4 to 60 m3/h) and pressures up to 125 psi (8.6 bar).
Performance and Specifications
Available Models
- TXD1220
- TXD1225
- TXD1230
MIN/MAX SPEED (rpm)
- TXD1220 & TXD1225: 700 – 1,200
- TXD1230: 270 – 900
NOMINAL FLOW RATE RANGE
- TXD1220: 48 – 87 gpm (181 – 329 L/min)
- TXD1225: 80 – 157 gpm (302 – 594 L/min)
- TXD1230: 80 – 270 gpm (302 – 1,022 L/min)
Viscosity
- 0.2 – 20 cP
Differential Pressure
- 125 psi (8.6 bar)
PRIMARY MATERIALS OF CONSTRUCTION
- Cast Iron
Connection Orientation
- Side Inlet | Top Outlet
MAXIMUM WORKING PRESSURE (MAWP)
- 225 psi (15.5 bar)
Temperature
- -25°F to 240°F (-32°C to 115°C)
Available Certificates
- Hydrostatic Test
- Performance Test
- NPSH Test
- Material (actual or typical)
- Dimensional (actual or typical)
Catalog Options
- Connections: NPT, Weld, Victaulic
- Elastomers: FKM
- Valve: Corrosion resistant
- Inlet Strainer, Hydraulic Motor Adapter
TXD1220 Nominal Flow Range Rate
