Description

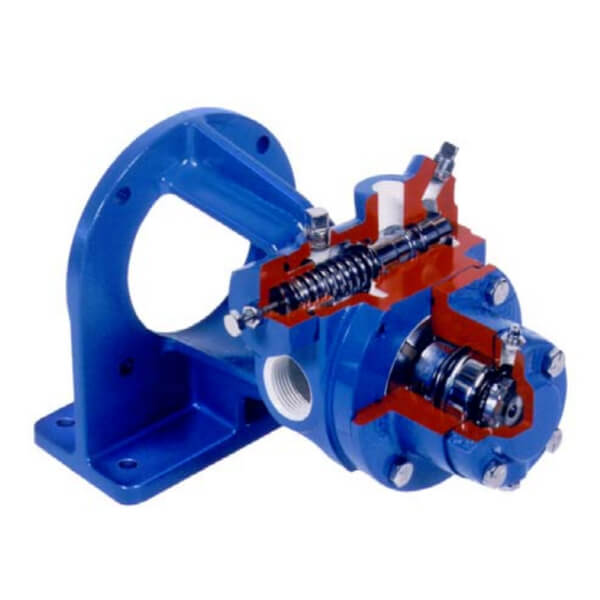

X1 Sliding Vane Pumps
The X1 Series, part of the Iron Line of sliding vane pumps, consists of thermal shock-resistant ductile iron construction with external ball bearings isolated from the pumpage by mechanical seals, designed to couple directly to standard electric motors. This pump’s design meets tight installation requirements. XB1 and XB1P models are base-mounted for portable or pad installations. XF1 and XF1P types are fitted with an integral bracket for direct mounting to NEMA C-face motor.
Performance and Specifications
AVAILABLE MODELS
- Long Coupled: XB1, XB1P
- Flanged Motor: XF1, XF1P
NOMINAL FLOW RATE RANGE
- XB1 & XF1: 9 gpm (34 L/min)
- XB1P & XF1P: 14 gpm (53 L/min)
DIFFERENTIAL PRESSURE
- 125 psi (8.6 bar)
MAXIMUM WORKING PRESSURE (MAWP)
- 350 psi (24.1 bar)
VISCOSITY
- XB1 & XF1: 0.2 – 20 cP
- XB1P & XF1P: 0.2 – 20 cP
TEMPERATURE
- -25°F to 240°F (-32°C to 115°C)
MIN/MAX SPEED (rpm)
- 950 – 1,750
PRIMARY MATERIALS CONSTRUCTION
- Ductile Iron
CONNECTION ORIENTATION
- Side Inlet | Side Outlet
VANE MATERIALS
- Duravane
AVAILABLE CERTIFICATES
- Hydrostatic Test
- Performance Test
- NPSH Test
- Material (actual or typical)
- Dimensional (Pump only or Unit)
