Description

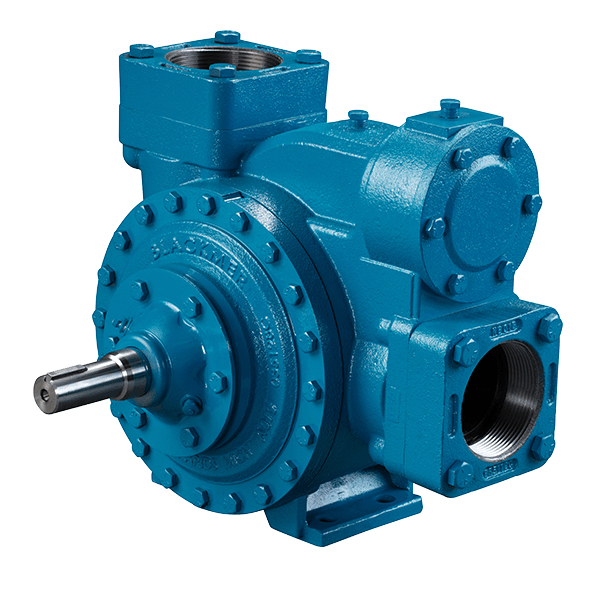

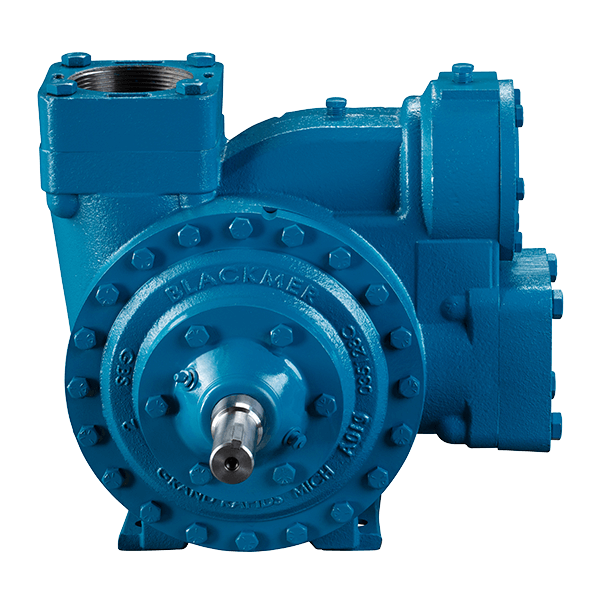

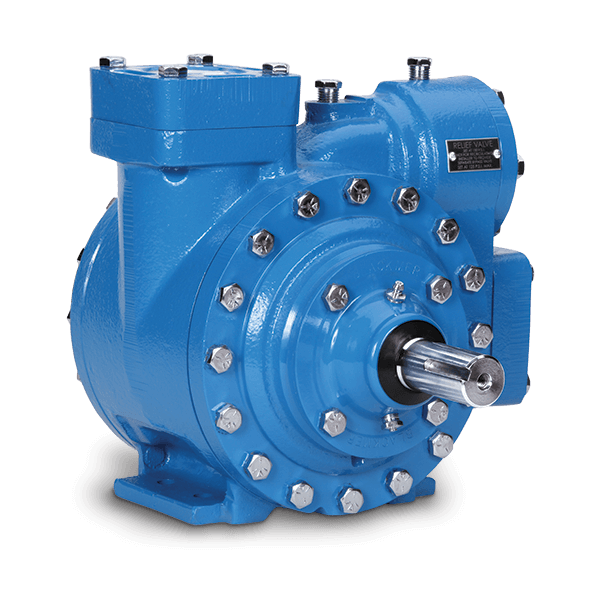

XL 2-4 Inch Sliding Vane Pumps

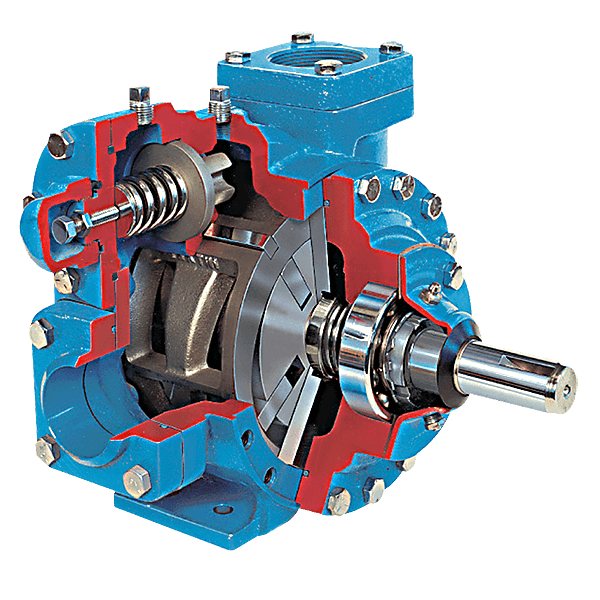

Designed for use in refineries, lube oil plants and general industry for processing, filling and transfer applications, the XL pump line – which is part of the Iron Line of sliding vane pumps – features replaceable casings, liners and end discs that allow easy rebuilding of the pumping chamber to like-new condition without removing the pump from the piping.
Performance and Specifications
AVAILABLE MODELS
- XL2
- XL3
- XL4
NOMINAL FLOW RATE RANGE
- XL2: 14 – 95 gpm (53 – 359 L/min)
- XL3: 24 – 192 gpm (192 – 726 L/min)
- XL4: 104 – 345 gpm (394 – 1,306 L/min)
VANE MATERIALS
- Duravane
- EC Laminate
- EC Cast Iron
DIFFERENTIAL PRESSURE
- 150 psi (10.3 bar)
MAXIMUM WORKING PRESSURE (MAWP)
- 350 psi (24.1 bar)
VISCOSITY
- 0.2 – 4,250 cP
TEMPERATURE
- -25°F to 300°F (-32°C to 149°C)
PRIMARY MATERIALS OF CONSTRUCTION
- Ductile Iron
CONNECTION ORIENTATION
- Side Inlet | Top Outlet
MIN/MAX SPEED (rpm)
- XL2, XL3: 125 – 780
- XL4: 125 – 640
AVAILABLE CERTIFICATES
- Hydrostatic Test
- Performance Test
- NPSH Test
- Material (actual or typical)
- Dimensional (pump only or unit)
