Description

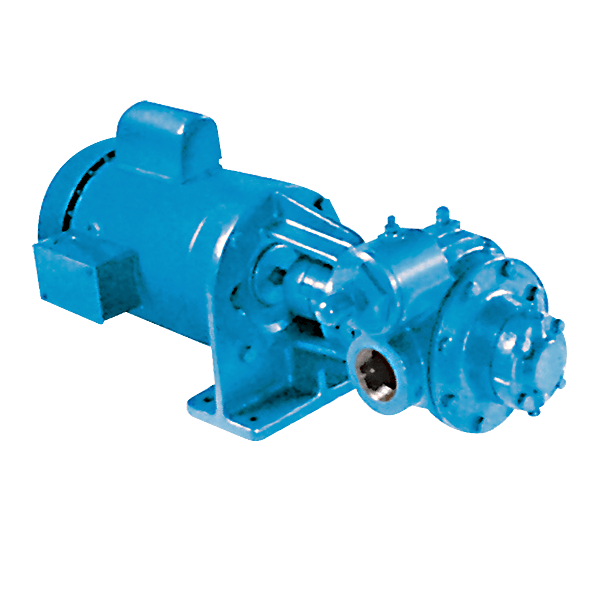

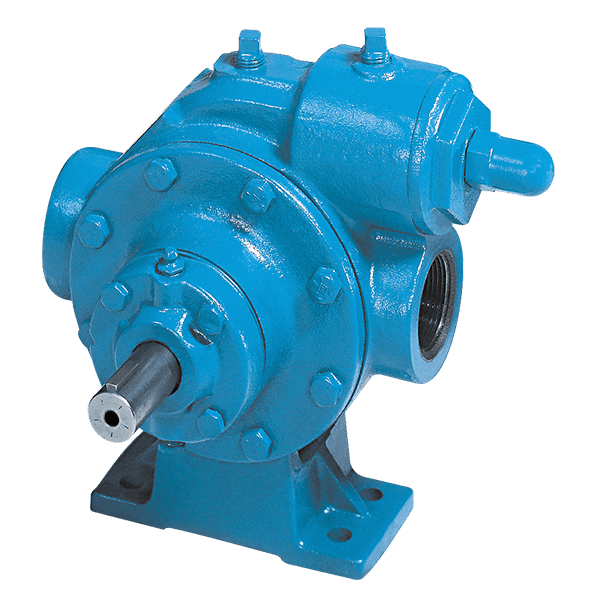

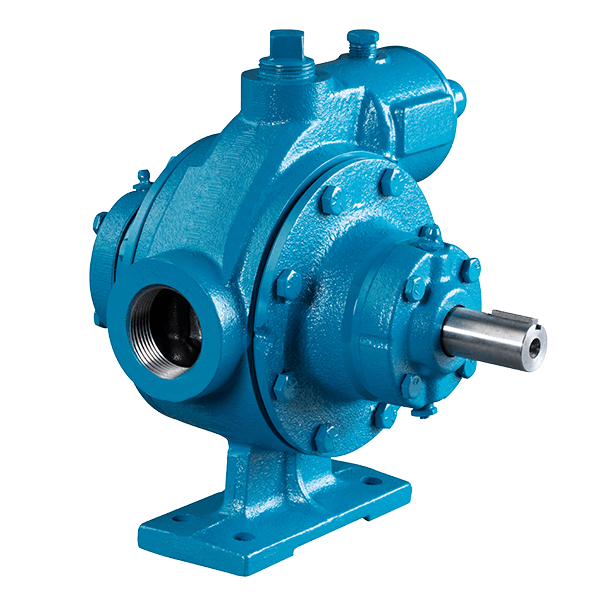

XL High-Speed Sliding Vane Pumps

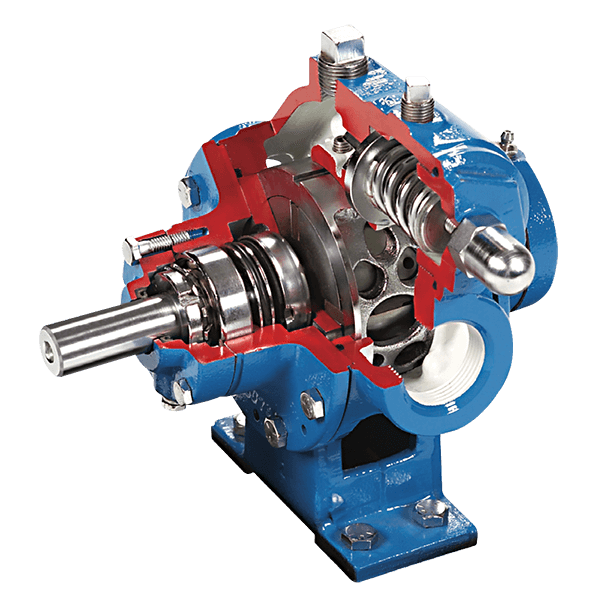

Designed for use in refineries, lube oil plants and general industry for processing, filling and transfer applications, the Iron Line XL pump line features replaceable casings, liners and end discs that allow easy rebuilding of the pumping chamber to like-new condition without removing the pump from the piping.
Performance and Specifications
AVAILABLE MODELS
- XRL(F)1.25
- XL(F)1.25
- XL(F)1.5
NOMINAL FLOW RATE RANGE
- XRL(F)1.25: 4 – 17 gpm (15 – 64 L/min)
- XL(F)1.25: 4 – 23 gpm (15 – 87 L/min)
- XL(F)1.5: 7 – 35 gpm (35 – 132 L/min)
VANE MATERIALS
- Duravane
- EC Laminate
DIFFERENTIAL PRESSURE
- 150 psi (10.3 bar)
MAXIMUM WORKING PRESSURE (MAWP)
- 350 psi (24.1 bar)
VISCOSITY
- 0.2 – 4,250 cP
TEMPERATURE
- -25°F to 300°F (-32°C to 149°C)
MIN/MAX SPEED (rpm)
- 100 – 1,800
CONNECTION ORIENTATION
- Side Inlet | Side Outlet
PRIMARY MATERIALS OF CONSTRUCTION
- Ductile Iron
AVAILABLE CERTIFICATES
- Hydrostatic Test
- Performance Test
- NPSH Test
- Material (actual or typical)
- Dimensional (pump only or unit)
