Description

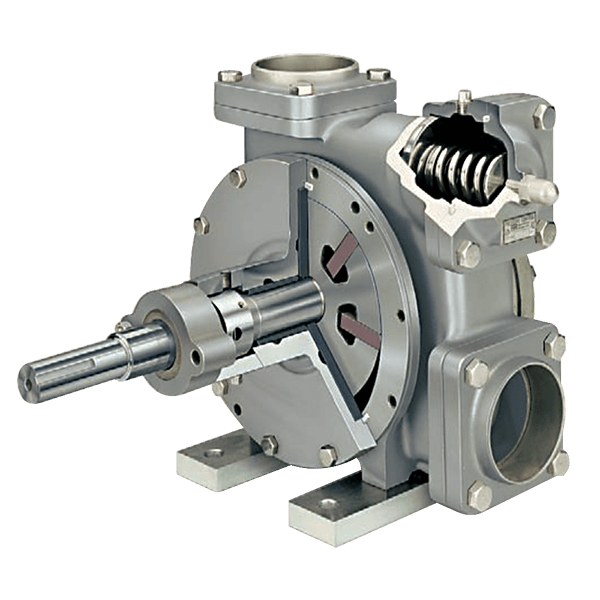

SNP 2-3 Inch Sliding Vane Pumps
SNP Series pumps, which are part of the Stainless Line of sliding vane pumps, are capable of meeting these demands because they offer the flexibility needed to handle caustic and corrosive liquids at varying temperatures, pressures and viscosities. This allows them to be used in various loading/unloading and transfer applications, while the stainless-steel construction of the SNP model makes its ideal for handling a variety of corrosive or caustic fluids, which is a crucial consideration in the manufacture and shipping of biodiesel.
With flow rates of 75 to 275 U.S. gpm (178 to 1,040 L/min) and standard operating temperatures of -25°F to 350°F (-31°C to 177°C), the SNP 2- and 3-in pumps offer the best combined characteristics of sustained high-level performance, energy efficiency, trouble-free operation and low maintenance cost.
Performance and Specifications
AVAILABLE MODELS
- SNP2
- SNP2.5
- SNP3
NOMINAL FLOW RATE
- SNP2: 12 – 75 gpm (46 – 284 L/min)
- SNP2.5: 46 – 134 gpm (174 – 507 L/min)
- SNP3: 90 – 275 gpm (341 – 1,040 L/min)
VANE MATERIALS
- Duravane
- EC Laminate
Viscosity
- 0.2 – 6,300 cP
TEMPERATURE
- -25°F to 350°F (-31°C to 177°C)
DIFFERENTIAL PRESSURE
- 150 psi (10.3 bar)
MIN/MAX SPEED (rpm)
- 125 / 640
MAXIMUM WORKING PRESSURE (MAWP)
- 200 psi (13.8 bar)
PRIMARY MATERIALS OF CONSTRUCTION
- Stainless Steel
CONNECTION ORIENTATION
- SNP2/SNP2.5: Side Inlet | Side Outlet
- SNP3: Side Inlet | Top Outlet
AVAILABLE CERTIFICATES
- Hydrostatic Test
- Performance Test
- NPSH Test
- Material (actual or typical)
- Dimensional (pump only or unit)
